PACKAGE LIST

• Smart switch * 1
• User Manual * 1
• Screw * 2
• Capacitor * 2
•


Main Features:

1. Smaller concealed parts: Require less space, making installation more convenient.
2. 433MHz +Wi-Fi More Choices: You can control the switch using a 433-enabled product or a wireless network.
3. APP remote control: The user can use a smartphone to remotely control the home electronics remotely anytime, anywhere as long as the phone has 2G / 3G / WIFI network compatible with iOS and Android operating system with SmartLife and Tuya.
4. Alexa and Google Home Control: Compatible with Amazon Alexa (Echo / Dot / Dot / Tap), Google Assistant. Flight ticket counter with Amazon Alexa or Google Home to turn your lights on or off with your voice.
5. Timing: The smart switch is automatically turned on and off at a given time through the timer function. Choose the time you want to wake up, automatically open the light, so you can easily enter the day; choose the time you want to close the light.
6. Share: The control switch can be shared with family members.
7. Support voice speaker control: The switch is compatible with Alexa and Google Home Assistant, allowing you to use the voice control smart switch to turn on/off.

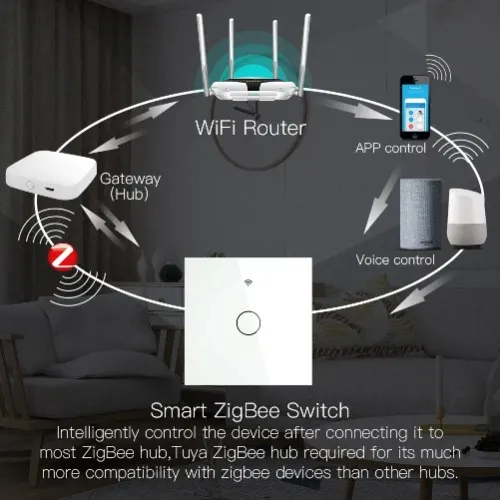

8. Require a Zigbee Gateway hub to connect to the internet

INSTALLATION PRECAUTIONS

• Install switch when disconnect the power
• Please make sure the switch box needs to be 35mm deep
• Live wire goes into L, neutral line goes into N. Please find a professional electrician if you have no experience in wiring.

SPECIFICATION

• Product Size: 8.6 x 8.6 x 3.5 cm
• System: support IOS8.0 / Android4.0 and above
• Wi-Fi Band: 2.4GHz
• Material: ABS flame retardant
• Panel Material: tempered glass
• Rated Power: 800W/gang
• Rated Current: 10A
• Input Voltage: AC110 ~ 240V, 50 / 60hz
• Standby Consumption: 0.45w/0.1mA
